以下最佳实践基于 Spring AI 1.0.0 和 Spring AI Alibaba 1.0.0.2 版本。
可观测背景
软件的可观测性（Observability）是指通过系统输出（如日志、指标、跟踪等）来推断其内部状态的能力。在 Spring AI 中基于 Spring 生态集成可观测性功能。包括 ChatClient（包含 ChatModel 和 Advisor，ToolCall 等） 、EmbeddingModel、ImageModel 和 VectorStore 。
Spring AI Alibaba 可观测性
Tips: Spring AI 一些输出内容较大且为了数据安全，在默认情况下没有开启打印开关，需要手动开启。
参考：https://docs.spring.io/spring-ai/reference/observability/index.html#_prompt_content
创建 Spring AI Alibaba 项目
引入依赖
项目中在跟 pom 中提前引入了 spring-ai-alibaba-bom，下文中没有列出。
- spring-ai-alibaba-starter-dashscope： dashscope starter
- spring-ai-alibaba-starter-tool-calling-weather：spring ai alibaba 工具 starter
- micrometer-tracing-bridge-brave zipkin-reporter-brave：观测依赖
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba.cloud.ai</groupId>
<artifactId>spring-ai-alibaba-starter-dashscope</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba.cloud.ai</groupId>
<artifactId>spring-ai-alibaba-starter-tool-calling-weather</artifactId>
</dependency>
<dependency>
<groupId>io.micrometer</groupId>
<artifactId>micrometer-tracing-bridge-brave</artifactId>
<version>1.5.0-M2</version>
<exclusions>
<exclusion>
<artifactId>slf4j-api</artifactId>
<groupId>org.slf4j</groupId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>io.zipkin.reporter2</groupId>
<artifactId>zipkin-reporter-brave</artifactId>
<version>3.4.3</version>
</dependency>
</dependencies>
application.yml 配置
- 开启 spring ai 的观测性功能
- 开启 spring ai alibaba weather tool 功能
spring:
application:
name: observability-models-dashscope
ai:
dashscope:
api-key: ${AI_DASHSCOPE_API_KEY}
observations:
log-completion: true
log-prompt: true
# spring ai alibaba weather tool calling config
alibaba:
toolcalling:
weather:
api-key: ${WEATHER_API_KEY}
enabled: true
# Chat config items
chat:
client:
observations:
# default value is false.
log-prompt: true
log-completion: true
include-error-logging: true
# tools config items
tools:
observability:
# default value is false.
include-content: true
# Image observation is only support openai for spring ai.
# image:
# observations:
# log-prompt: true
http:
client:
read-timeout: 60s
management:
endpoints:
web:
exposure:
include: "*"
endpoint:
health:
# 应用健康状态检查，携带详细新学年
show-details: always
tracing:
sampling:
# trace 采样信息，记录每个请求
probability: 1.0
Controller
此部分为 ai 服务的具体实现，以 ChatClient 为例，Embedding 和 Image 类似：
@RestController
@RequestMapping("/observability/chat")
public class ChatModelController {
private final ChatClient chatClient;
public ChatModelController(ChatClient.Builder builder) {
this.chatClient = builder.build();
}
@GetMapping
public Flux<String> chat(@RequestParam(defaultValue = "hi") String prompt) {
return chatClient.prompt(prompt).stream().content();
}
}
启动依赖项
此 demo 中将数据导入到 zipkin 展示，因此需要启动一个 zipkin：
services:
zipkin:
image: 'openzipkin/zipkin:latest'
ports:
- '9411:9411'
可观测输出
ChatClient
指标介绍：https://docs.spring.io/spring-ai/reference/observability/index.html#_chat_client

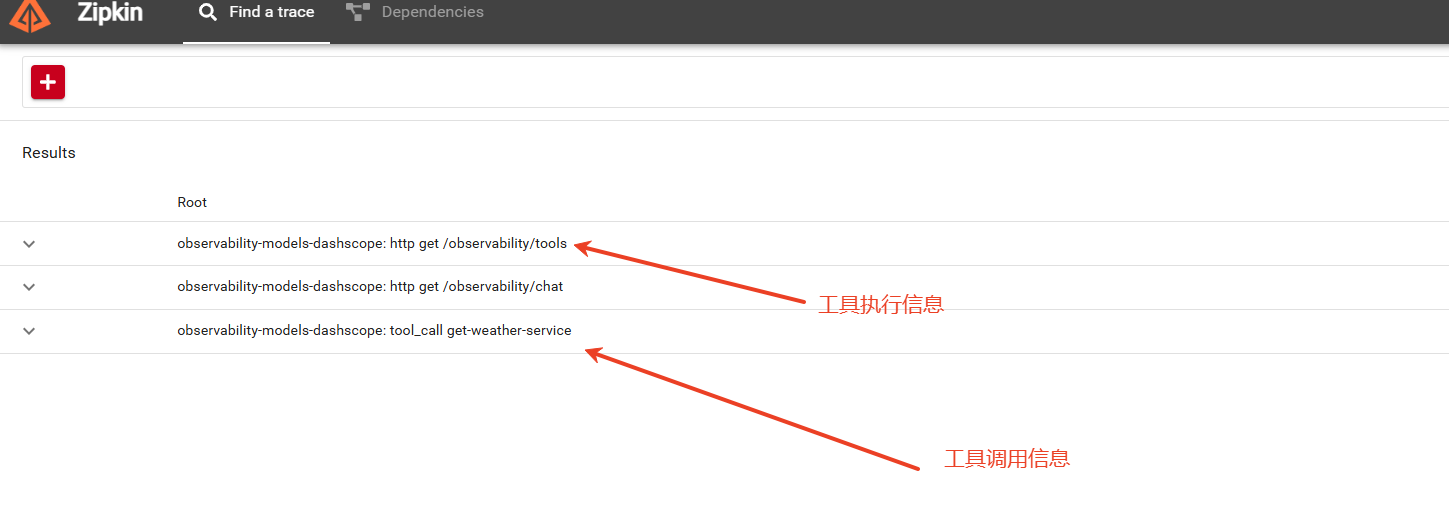

在下文中即可看到 chatClient 相关的信息：
ToolCalling
指标介绍：https://docs.spring.io/spring-ai/reference/observability/index.html#_tool_calling

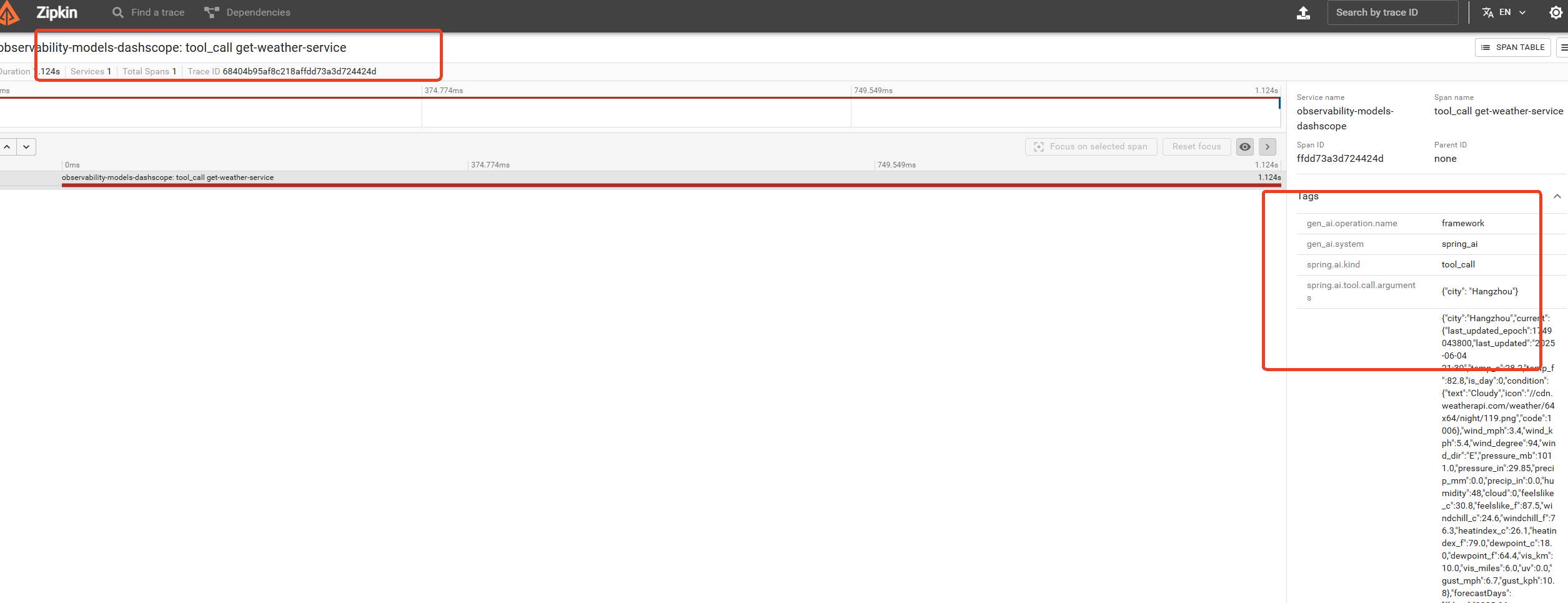

在下面的 tool 模块可以看到 tools 的入参和出参信息：

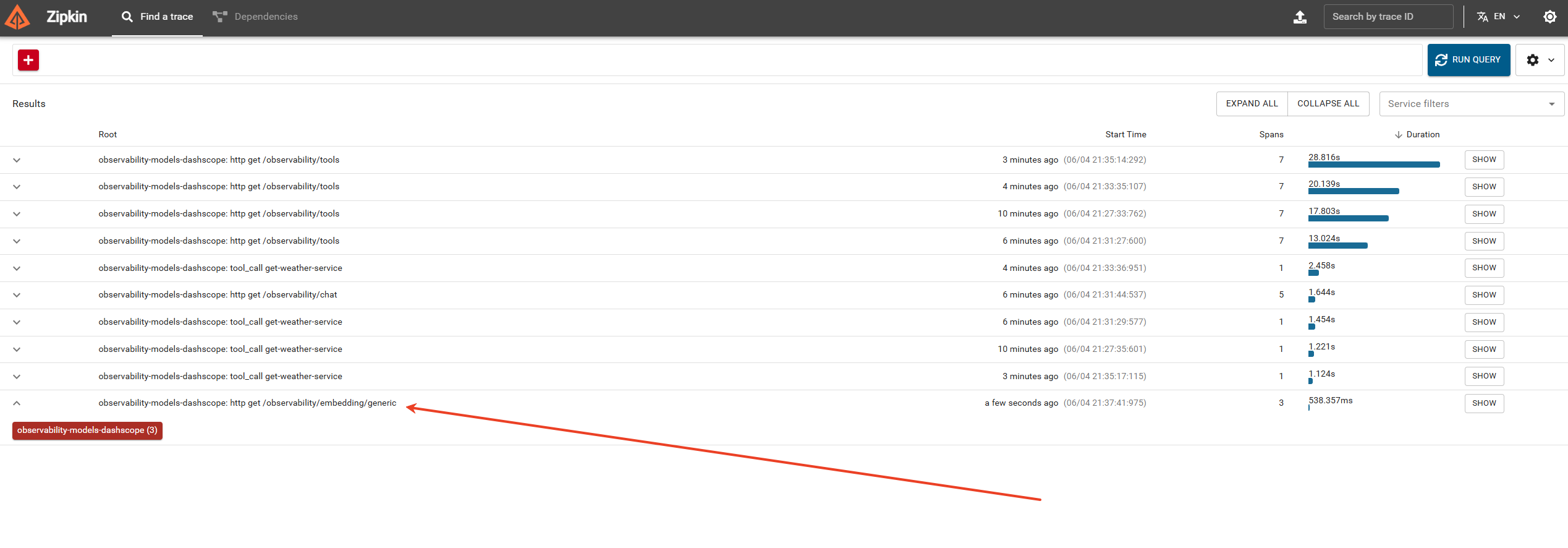

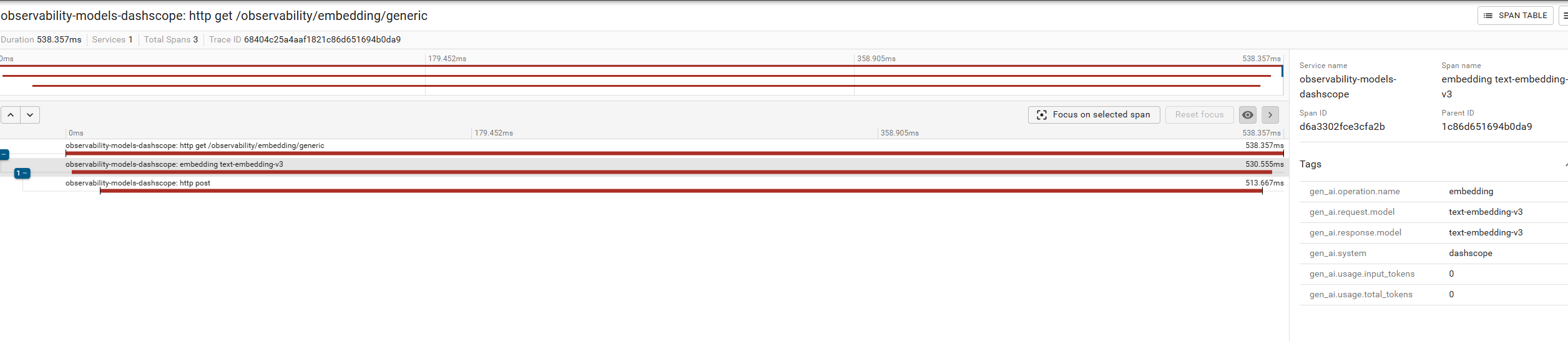

Embedding Client
指标参考：https://docs.spring.io/spring-ai/reference/observability/index.html#_embeddingmodel
扩展 Spring AI 指标
Spring AI 提供了 ObservationHandler<ChatModelObservationContext> 机制来扩展可观测信息，您可以加入或者改变观测数据。
pom
pom 中只需引入对应的 starter 即可。
<dependencies>
<dependency>
<groupId>com.alibaba.cloud.ai</groupId>
<artifactId>spring-ai-alibaba-starter-dashscope</artifactId>
</dependency>
</dependencies>
application.yml
spring:
application:
name: observationhandler-example
CustomerObservationHandler
扩展实现
public class CustomerObservationHandler implements ObservationHandler<ChatModelObservationContext> {
@Override
public void onStart(ChatModelObservationContext context) {
System.out.println("exec CustomerObservationHandler onStart function! ChatModelObservationContext: " + context.toString() );
}
@Override
public void onStop(ChatModelObservationContext context) {
System.out.println("exec CustomerObservationHandler onStop function! ChatModelObservationContext: " + context.toString() );
}
@Override
public boolean supportsContext(Observation.Context context) {
return true;
}
}
Chat Controller
@RestController
@RequestMapping("/custom/observation/chat")
public class ChatModelController {
@GetMapping
public String chat(@RequestParam(defaultValue = "hi") String message) {
ObservationRegistry registry = ObservationRegistry.create();
registry.observationConfig().observationHandler(new CustomerObservationHandler());
// Need to set the API key in the environment variable "AI_DASHSCOPE_API_KEY"
// Spring Boot Autoconfiguration is injected use ChatClient.
return DashScopeChatModel.builder()
.dashScopeApi(DashScopeApi.builder().apiKey(System.getenv("AI_DASHSCOPE_API_KEY")).build())
.observationRegistry(registry)
.build()
.call(message);
}
}
当在请求 chat 接口时，会执行 custom handler 中的代码语句：
exec CustomerObservationHandler onStart function! ChatModelObservationContext: name='gen_ai.client.operation', contextualName='null', error='null', lowCardinalityKeyValues=[gen_ai.operation.name='chat', gen_ai.request.model='qwen-plus', gen_ai.response.model='none', gen_ai.system='dashscope'], highCardinalityKeyValues=[gen_ai.request.temperature='0.7'], map=[], parentObservation=null
exec CustomerObservationHandler onStop function! ChatModelObservationContext: name='gen_ai.client.operation', contextualName='chat qwen-plus', error='null', lowCardinalityKeyValues=[gen_ai.operation.name='chat', gen_ai.request.model='qwen-plus', gen_ai.response.model='none', gen_ai.system='dashscope'], highCardinalityKeyValues=[gen_ai.request.temperature='0.7', gen_ai.response.finish_reasons='["STOP"]', gen_ai.response.id='9582b50a-4056-9b7e-b2ca-e52368406b5e', gen_ai.usage.input_tokens='9', gen_ai.usage.output_tokens='7', gen_ai.usage.total_tokens='16'], map=[], parentObservation=null
